How to Calculate Currents and Voltages in an Electrical Circuit

Introduction

Circuit analysis serves as the backbone of electrical engineering, underpinning a wide array of applications across the energy sector. Whether in power generation, transmission, distribution, or the myriad of electrical devices that power our daily lives, understanding circuits is paramount. At its core, an electrical circuit consists of various components, including voltage sources, resistors, inductors, capacitors, and diodes among others. The foundational principle of Ohm’s Law forms the cornerstone of circuit analysis, providing engineers with a framework to comprehend and manipulate electrical systems.

Why AC Circuit Analysis is Important to Electrical Systems

The significance of circuit analysis is multifaceted. It empowers engineers to gain insights into the behavior of electrical systems, facilitating the design process to maximize efficiency, reliability, and stability. By leveraging circuit analysis techniques, engineers can optimize designs, ensuring cost-effectiveness and adherence to industry standards and regulations. Moreover, circuit analysis plays a critical role in troubleshooting, enabling engineers to identify and rectify faults promptly, thereby enhancing system performance and safety.

Fundamental Applications of AC Circuit Analysis

In practical applications, circuit analysis techniques such as Nodal Analysis, Kirchhoff’s Current Law, and Kirchhoff’s Voltage Law (KCL and KVL) are invaluable tools. Through these methods, engineers can calculate branch currents, node voltages, and other parameters essential for system characterization and optimization. By employing rigorous analysis methodologies grounded in fundamental principles, engineers can navigate the complexities of electrical systems with precision and confidence, driving innovation and advancement in the field of electrical engineering.

Examples:

In this post, two simple AC circuits are analyzed to calculate the branch currents and voltages at nodes using the Nodal Analysis method, Kirchhoff’s Laws (KCL and KVL), and Ohm’s Law.

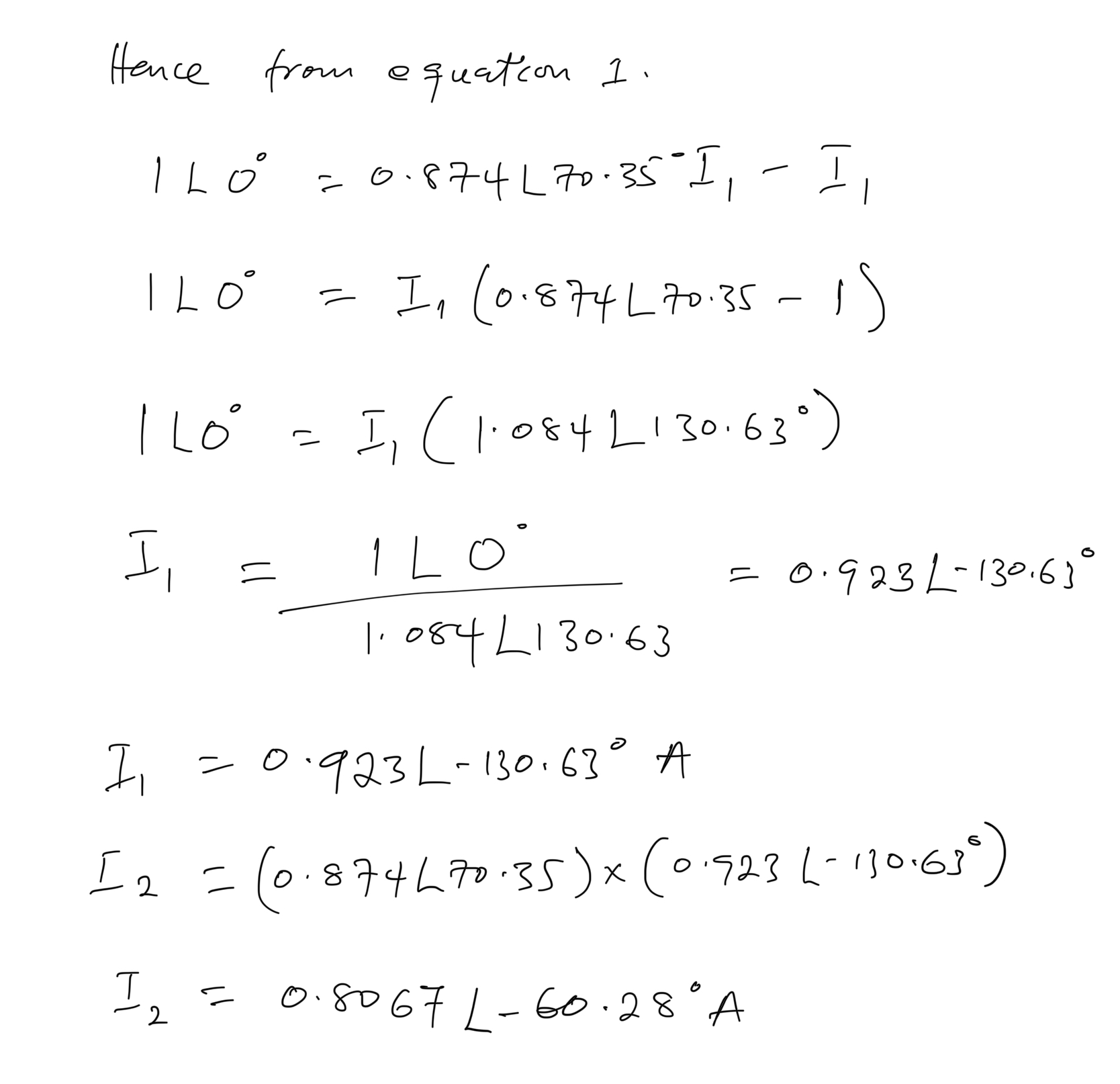

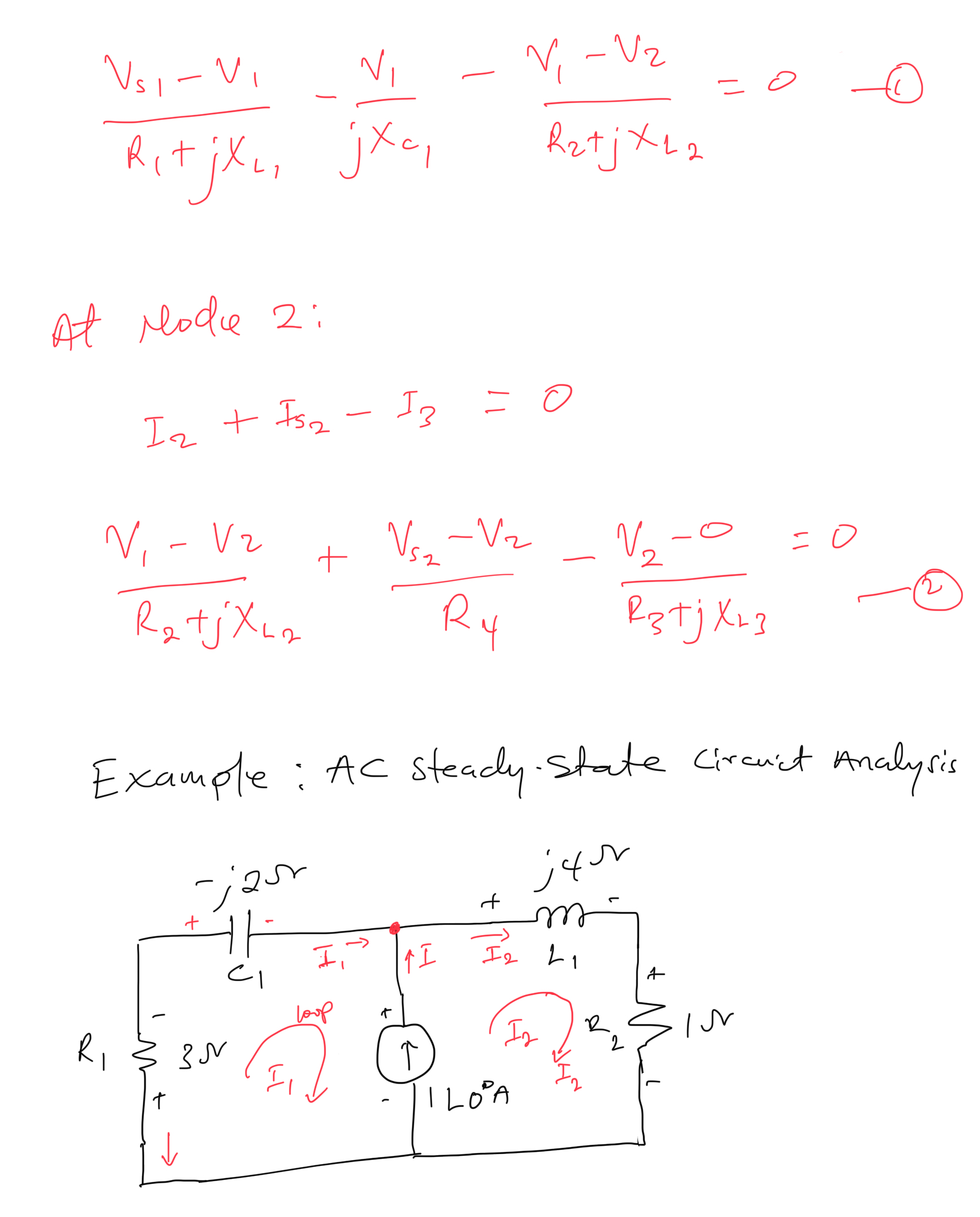

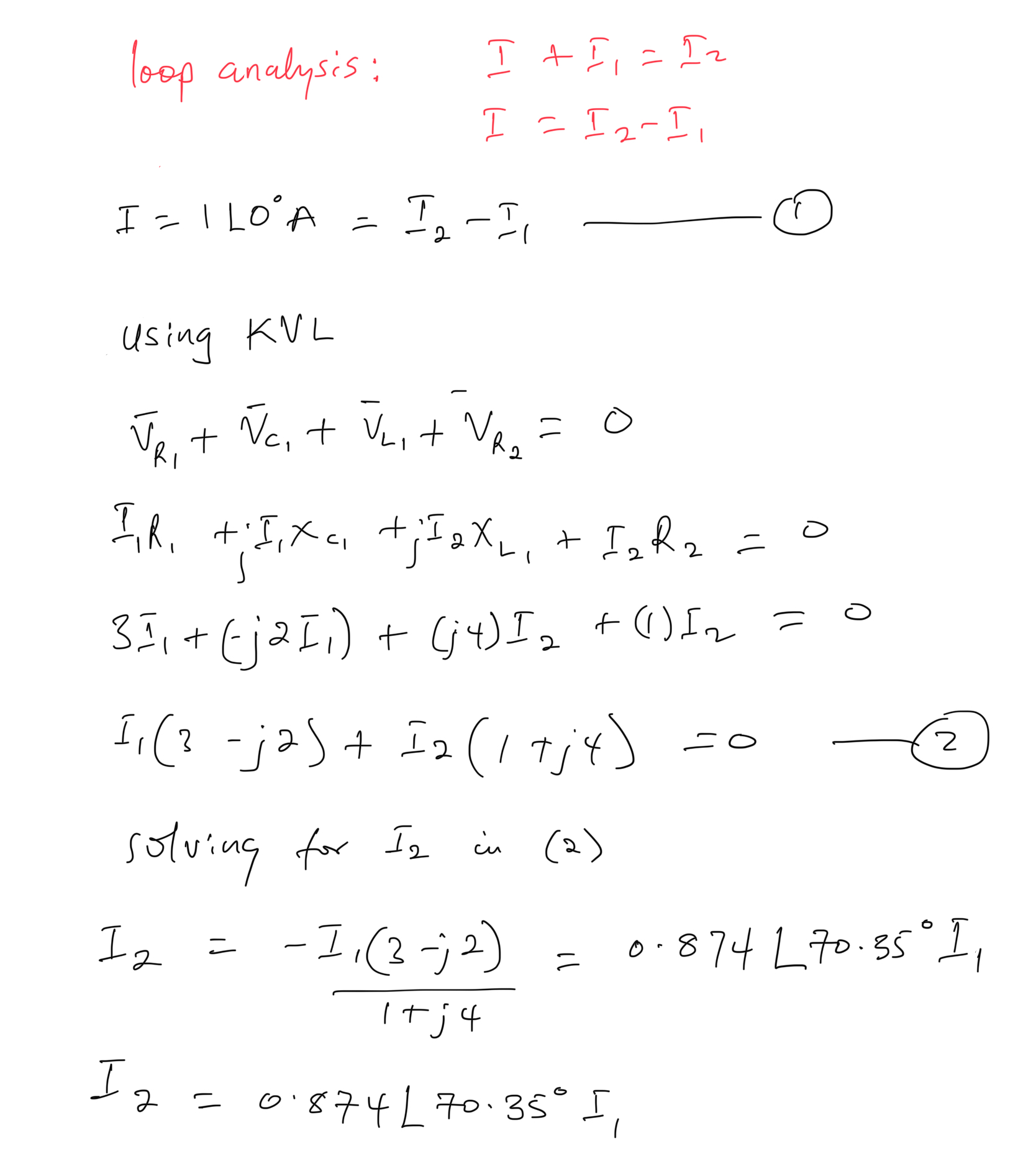

In the first example, currents I1 and I2 are calculated given current I.

Calculating Branch Currents in an AC Electric Circuit

Calculating Node Voltages in an AC Electric Circuit

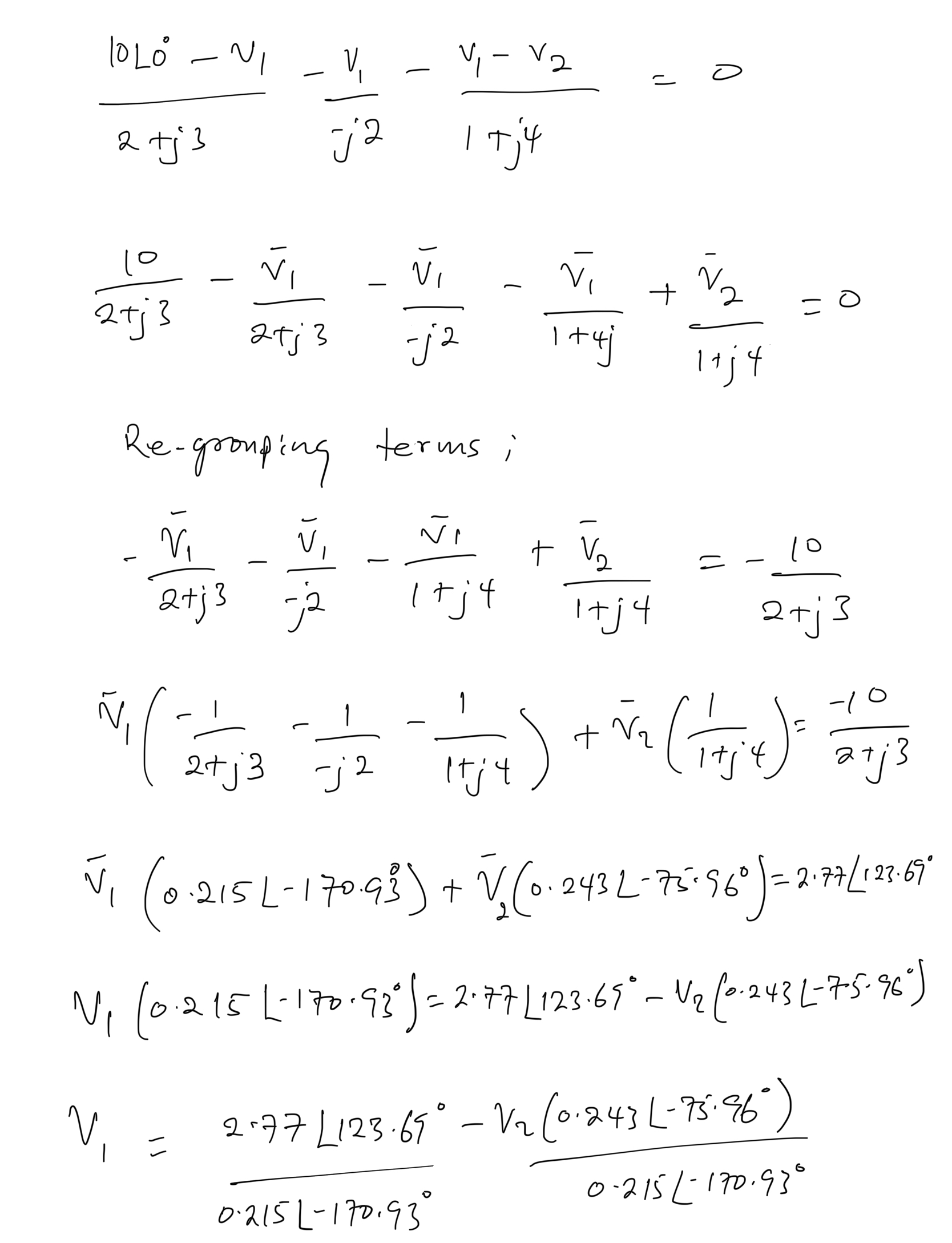

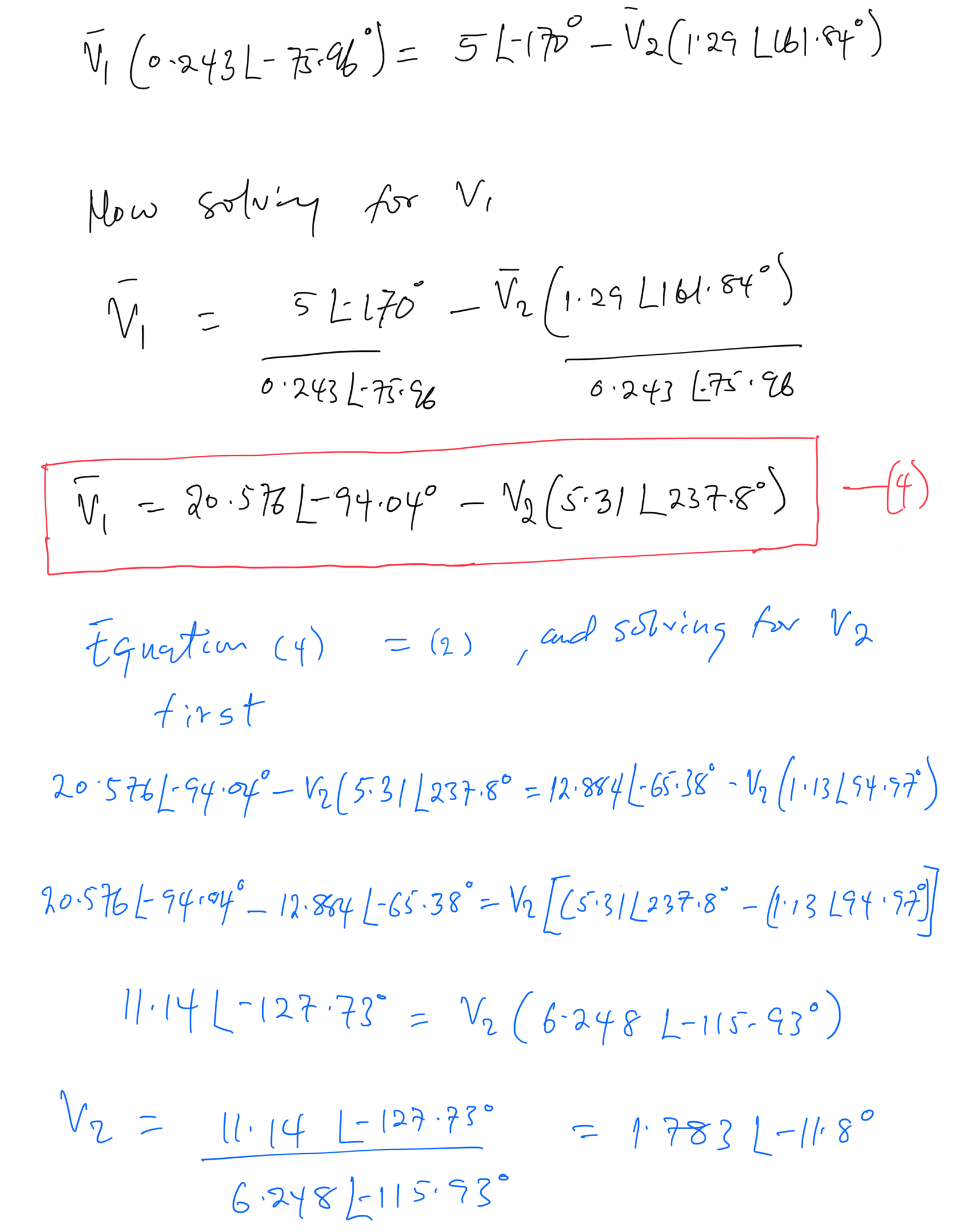

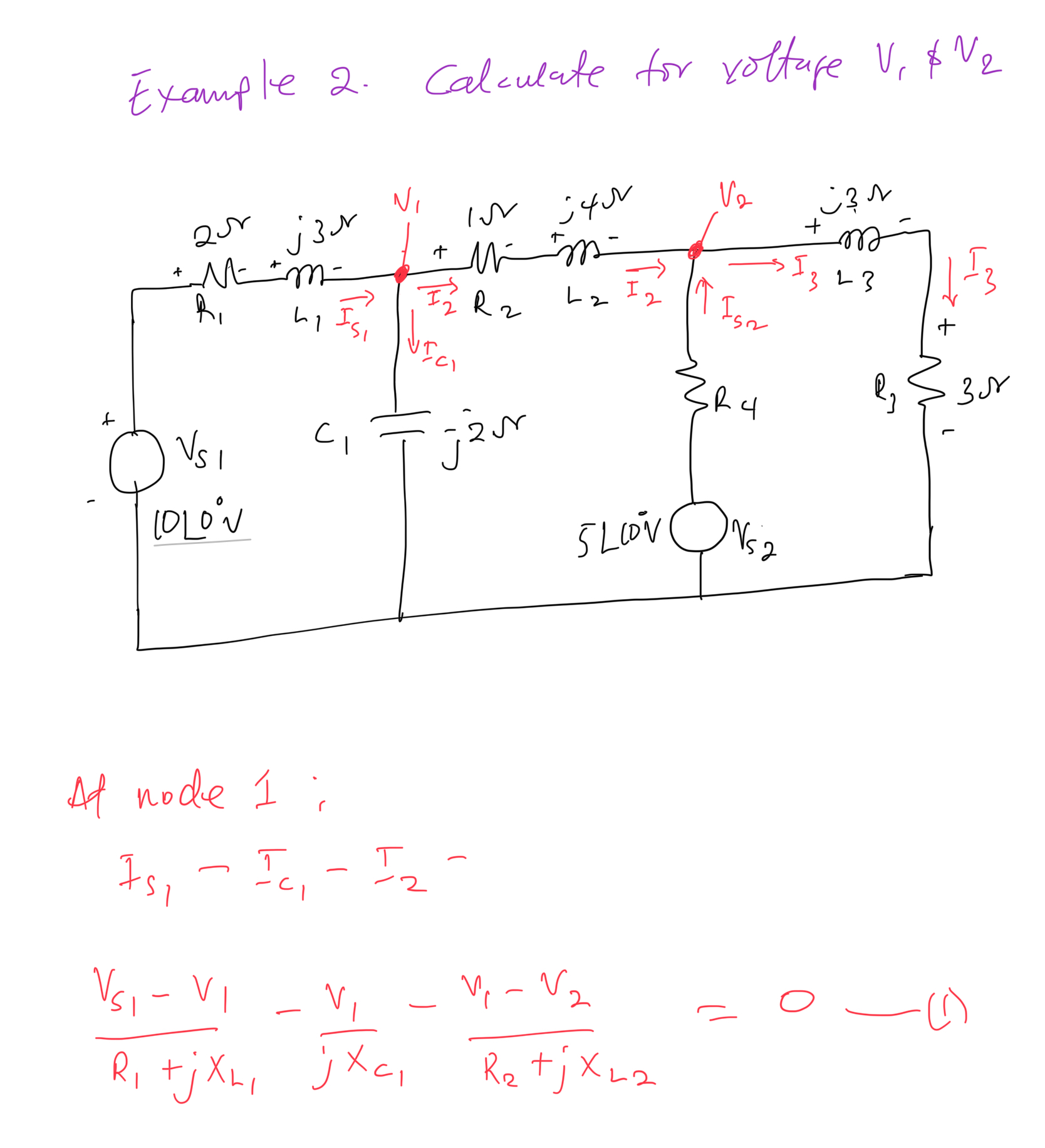

With the second example below, two voltage sources Vs1 and Vs2 are provided, and then node voltages V1 and V2 are calculated.

Conclusion

Indeed, hand calculations serve as a fundamental learning tool in circuit analysis. It is impractical for one to perform hand calculations for larger or more intricate electrical systems. To address this challenge, a plethora of Free software tools and commercial software packages have been developed, empowering engineers to tackle complex circuits with ease and efficiency. These tools leverage advanced algorithms and computational capabilities to handle the intricacies of real-world projects, enabling engineers to perform rigorous studies and analyses.

However, despite the availability of sophisticated software, possessing a strong foundation in circuit analysis principles remains indispensable for engineers. Understanding the underlying concepts and methodologies not only enhances proficiency in utilizing software tools but also fosters critical thinking and problem-solving skills essential for addressing real-world challenges.

By equipping engineers with the knowledge and understanding of circuit analysis fundamentals, this post aims to cultivate a solid framework upon which they can build their expertise and navigate the complexities of electrical engineering projects with confidence and proficiency.

For further and in-depth experience in AC systems, I took this AC Electric Circuit Analysis certified training course that you may also find useful.
